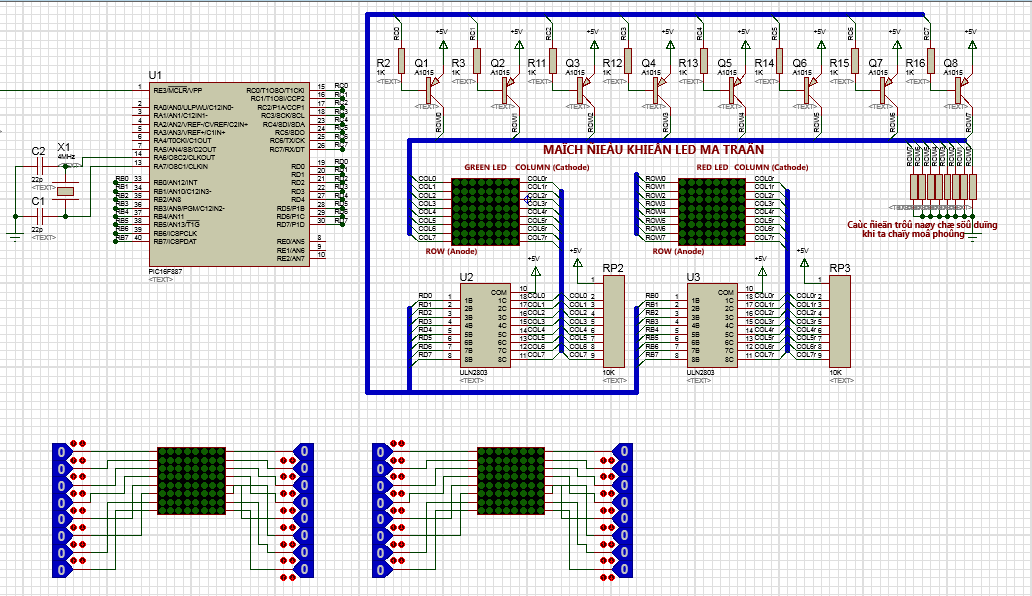

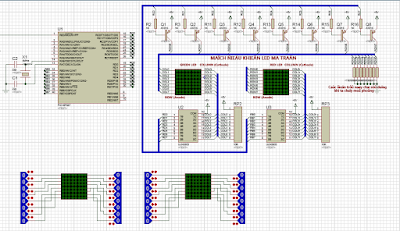

// PIC16F887 Configuration Bit Settings
// 'C' source line config statements
// CONFIG1
#pragma config FOSC = HS // Oscillator Selection bits (HS oscillator: High-speed crystal/resonator on RA6/OSC2/CLKOUT and RA7/OSC1/CLKIN)
#pragma config WDTE = OFF // Watchdog Timer Enable bit (WDT disabled and can be enabled by SWDTEN bit of the WDTCON register)
#pragma config PWRTE = OFF // Power-up Timer Enable bit (PWRT disabled)
#pragma config MCLRE = ON // RE3/MCLR pin function select bit (RE3/MCLR pin function is MCLR)
#pragma config CP = OFF // Code Protection bit (Program memory code protection is disabled)
#pragma config CPD = OFF // Data Code Protection bit (Data memory code protection is disabled)
#pragma config BOREN = OFF // Brown Out Reset Selection bits (BOR disabled)
#pragma config IESO = OFF // Internal External Switchover bit (Internal/External Switchover mode is disabled)
#pragma config FCMEN = OFF // Fail-Safe Clock Monitor Enabled bit (Fail-Safe Clock Monitor is disabled)
#pragma config LVP = OFF // Low Voltage Programming Enable bit (RB3 pin has digital I/O, HV on MCLR must be used for programming)
// CONFIG2
#pragma config BOR4V = BOR40V // Brown-out Reset Selection bit (Brown-out Reset set to 4.0V)
#pragma config WRT = OFF // Flash Program Memory Self Write Enable bits (Write protection off)
// #pragma config statements should precede project file includes.
// Use project enums instead of #define for ON and OFF.
#include <xc.h>
#define _XTAL_FREQ 4000000
const unsigned char choncot[]={0x01,0x02,0x04,0x08,0x10,0x20,0x40,0x80};
const unsigned char maled[]={0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0x7F,0x7F,0xFF,0xFF,0x7F,0x7F,0xFF,
0x7F,0x3F,0x3F,0x7F,0x7F,0x3F,0x3F,0x7F,
0x3F,0x1F,0x1F,0x3F,0x3F,0x1F,0x1F,0x3F,
0x1F,0x0F,0x0F,0x1F,0x1F,0x0F,0x0F,0x1F,
0x8F,0x07,0x07,0x0F,0x0F,0x07,0x07,0x8F,
0xC7,0x83,0x03,0x07,0x07,0x03,0x83,0xC7,
0xE3,0xC1,0x81,0x03,0x3,0x81,0xC1,0xE3,
0xF1,0xE0,0xC0,0x81,0x81,0xC0,0xE0,0xF1,
0xF8,0xF0,0xE0,0xC0,0xC0,0xE0,0xF0,0xF8,
0xFC,0xF8,0xF0,0xE0,0xE0,0xF0,0xF8,0xFC,
0xFE,0xFC,0xF8,0xF0,0xF0,0xF8,0xFC,0xFE,
0xFF,0xFE,0xFC,0xF8,0xF8,0xFC,0xFE,0xFF,
0xFF,0xFF,0xFE,0xFC,0xFC,0xFE,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFE,0xFE,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,
};
const unsigned char maled1[]={
0xFF,0x7F,0x7F,0xFF,0xFF,0x7F,0x7F,0xFF,
0xFF,0x7F,0x7F,0xFF,0xFF,0x7F,0x7F,0xFF,
0xFF,0x7F,0x7F,0xFF,0xFF,0x7F,0x7F,0xFF,
0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,
0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,
0xFF,0x7F,0x7F,0xFF,0xFF,0x7F,0x7F,0xFF,
0xFF,0x7F,0x7F,0xFF,0xFF,0x7F,0x7F,0xFF,
0xFF,0x7F,0x7F,0xFF,0xFF,0x7F,0x7F,0xFF,
};
int i=0;
int j=0;
int dat=0;
void delay(void)
{
__delay_ms(5);
}
void main(void)
{
ANSEL=0x00;
ANSELH=0x00;
TRISB=0;
TRISC=0;
// TRISD=0;
dat=0;
while(1)
{
if(dat>=136)
{
dat=0;
}
for(j=0;j<=10;j++)
{
for(i=0;i<=7;i++)
{
PORTC=choncot[i];
// PORTD=choncot[i];
PORTB=maled[dat+i];
// PORTB=maled1[dat+i];
RB3=RB4=0;
TRISD=0;
PORTD=choncot[i];
delay();
}
//}
}
dat=dat+8;
}
}
